Blueprint Reader: 5 Checks Before Any Takeoff

A blueprint reader is anyone (or any app) that turns a plan sheet into quantities you can order: it identifies the sheet and revision, confirms the scale, and traces every number back to a drawing reference. Read the title block, legend and scale first, then measure, and write the sheet and element beside each quantity.

The hard part of reading blueprints is not recognizing a wall symbol. It is the multipliers nobody draws. Four 30 ft partitions, 8 ft high, finished on two faces, give 1,920 sq ft of board. Forget the second face and you are short by half, a far bigger miss than any waste percentage you argue about.

How to read blueprints: start with the title block, not the rooms

Start with the drawing identity. The title block tells you the project, the sheet number and the issue you are holding. Compare it with the sheet index and any revision schedule. A clean PDF filename is not proof that every page belongs to the latest issue, and mixed revisions cause more unexplained quantity gaps than bad math does.

Read the general notes and the legend next. They define the abbreviations, line types and symbols for this set. A dashed outline can mean hidden work, demolition or an overhead feature, depending on the designer. List the symbols that matter to your trade and find their schedule references. Never borrow meaning from another project's legend.

Then pick the right view for the quantity. Plans locate things. Elevations show heights. Sections explain how an assembly is built. A height that lives on an elevation cannot always be recovered from a floor plan, so note which sheet each number came from.

Blueprint reading scale: verify before you measure

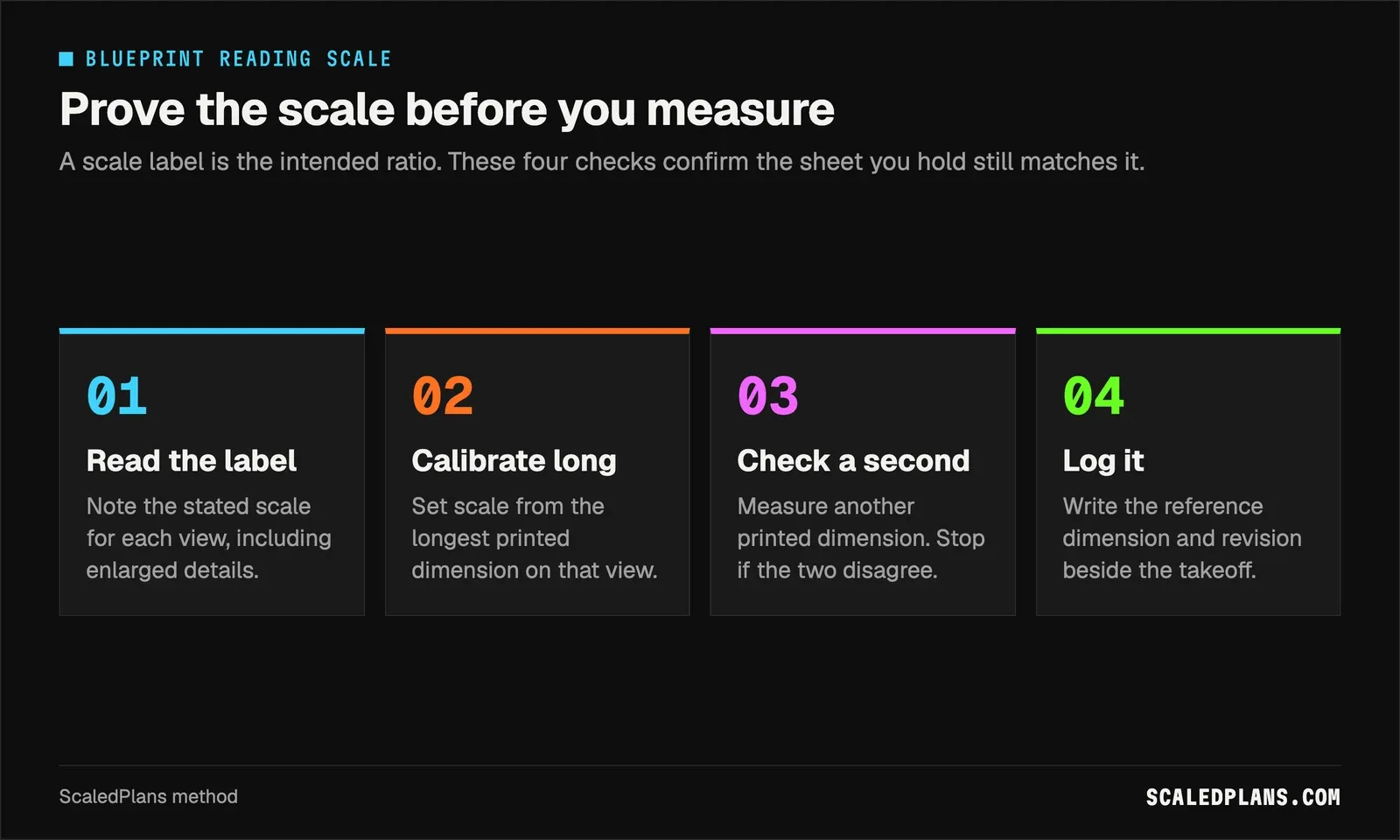

A scale label states the intended ratio, but a PDF can be resized on export or scanned from a print. Calibrate against a long labeled dimension on the same view, then check a second dimension. If horizontal and vertical checks disagree, look for distortion or a different viewport scale. Do not average the two into a convenient number.

At 1/4 in = 1 ft, a 30 ft run prints 7.5 in long (30 x 0.25 = 7.5). That holds only on a true-size print, not on your screen or a fit-to-page printout. Enlarged details on the same sheet often use their own scale. Bluebeam's guide to setting the page scale walks through calibration, and its notes on page scales and viewports cover sheets with several views. The principle is the same in any PDF tool.

Keep a one-line calibration note with the takeoff: the reference dimension, the sheet revision and any views you skipped because their scale could not be confirmed.

Worked example: one revised opening, traced from plan to sheets

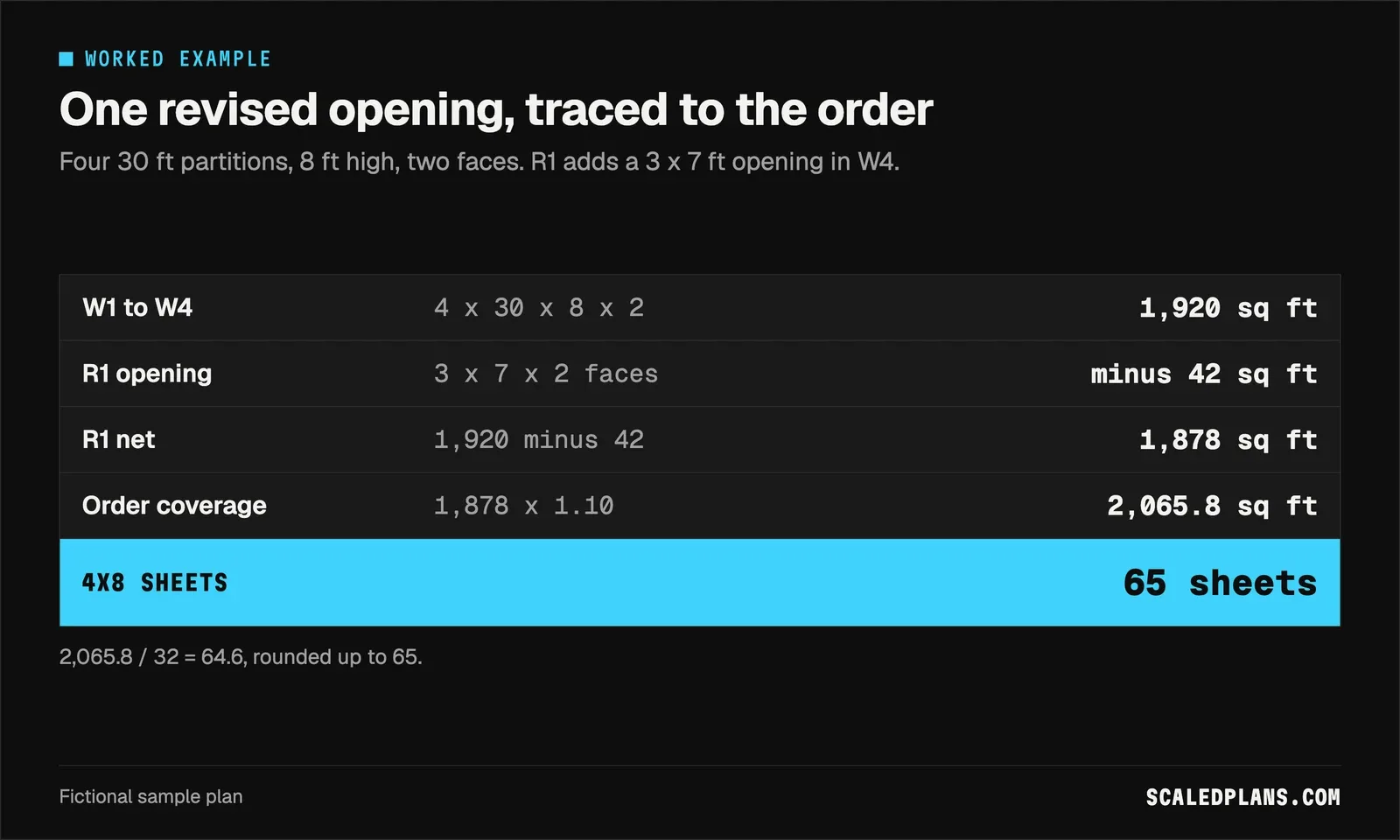

This fictional A1 sample has four partitions, W1 to W4. Each is 30 ft long and 8 ft high, finished on two faces with one layer of board. The R1 revision adds a 3 x 7 ft opening in W4, which removes board on both faces.

One run contributes 30 x 8 x 2 = 480 sq ft, so four runs give 1,920 sq ft. The opening takes 42 sq ft off once, from the total. The 10% waste factor and the 32 sq ft sheet stay fixed, so the only thing that moved the order is one geometric input you can point to on the drawing.

Two things in this example trip people up. First, the original A1 total and the R1 total are alternatives, not additions; sum them and you count most of the wall twice. Second, a separate ceiling or an extra board layer is added scope, not a revision, so it gets its own row.

AI blueprint reader or app: separate labels from geometry

An app that reads blueprints may find room names, symbols and schedule entries quickly. That is useful, but text recognition and measurement are different jobs. A recognized "30" can be a detail callout or a room number, not a length. Review the drawing around any extracted number before it becomes a material quantity.

Ask one question of every output: does it show its source? A wall length should show its endpoints and units. A fixture count should show the counted symbols and their legend category. An opening deduction should show its size, the faces it affects and the revision. If you are weighing a tool, run the test in our AI takeoff software guide on a sheet you already counted by hand.

Reading exterior and site sheets

Exterior scope needs elevations as well as the floor plan. A wall's length sits on the plan, while its finish height and any gable rise sit on the elevation. A triangular gable with a 24 ft base and a 5 ft rise adds 24 x 5 / 2 = 60 sq ft before deductions, and that number belongs to the elevation that shows it. The siding calculator keeps rectangles, gables and openings as separate inputs for the same reason.

Site sheets place the work on the lot. The north arrow and scale help you orient, but property lines and setbacks come from accepted survey documents, not from a screenshot you measured. Our site plan for permit guide covers what those sheets usually show; check details with your permit office.

Blueprint reader by situation

Reading blueprints by hand, and where it breaks

The manual method works. Print the sheet true to size or calibrate the PDF, measure each run, write length, height, faces and layers per wall, and multiply it out like the table above. For a single room, the free drywall calculator does the board math once your measurements are right, and the framing calculator gives a stud count for the same wall runs. Board area never converts to studs by some factor; framing has its own inputs, which our lumber takeoff guide walks through.

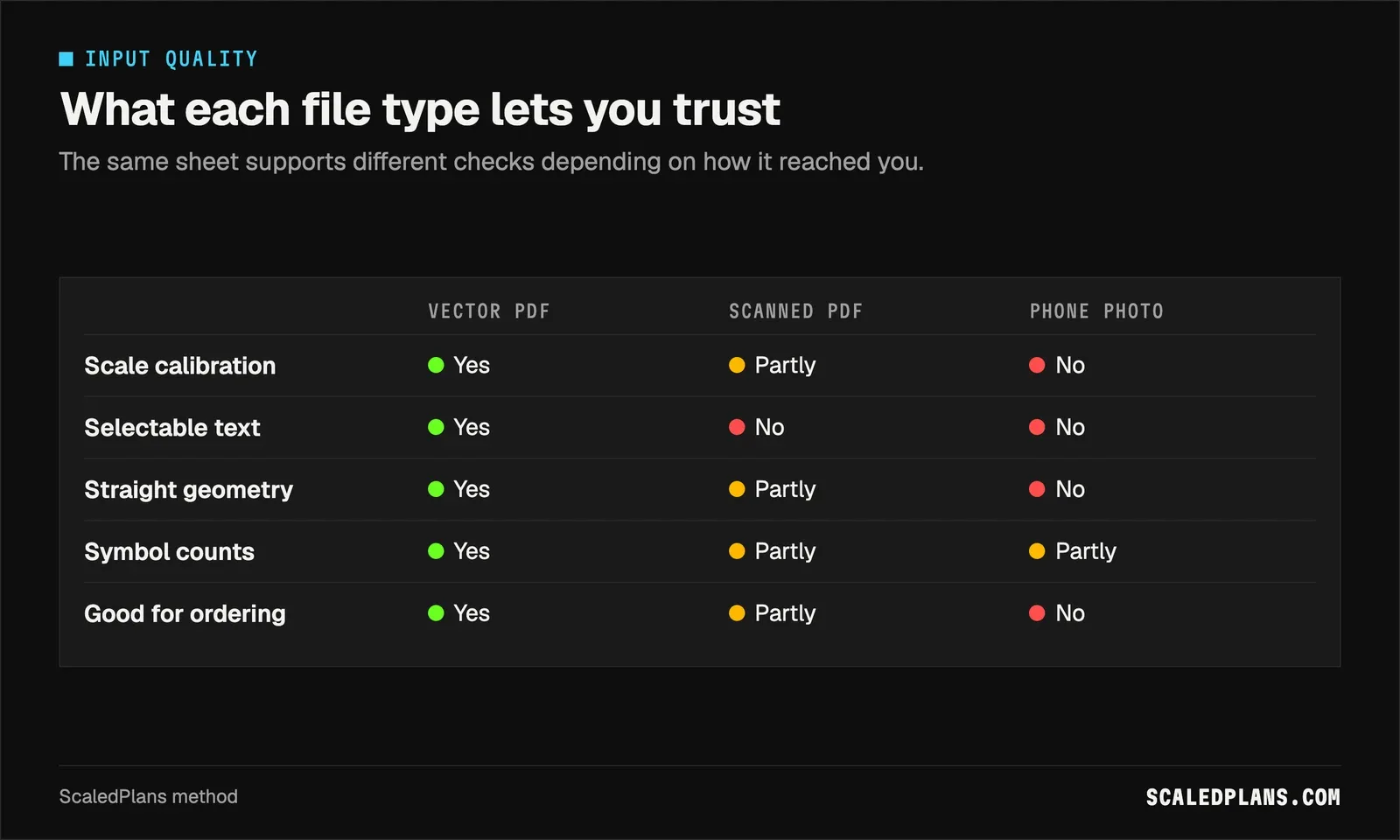

The wall shows up on the second revision. Every reissue means re-measuring, and a paper takeoff keeps no record of which runs you traced or which scale you set. Scanned sheets make calibration slower, and the third trade measuring the same walls gets a slightly different number. The free construction calculators handle the math; they cannot tell you that a measurement came from the wrong sheet.

ScaledPlans measures the plan for you and keeps each quantity tied to its sheet, and you check every quantity before you price it. Get started with one sheet you know well.

Common blueprint reading mistakes

• Trusting the scale label. Calibrate from a printed dimension and confirm with a second one.
• Dropping the second face. Write faces and layers as explicit multipliers on every row.
• Adding two revisions together. Pick one revision per scope before you sum.
• Measuring heights on a plan. Take them from elevations or sections.

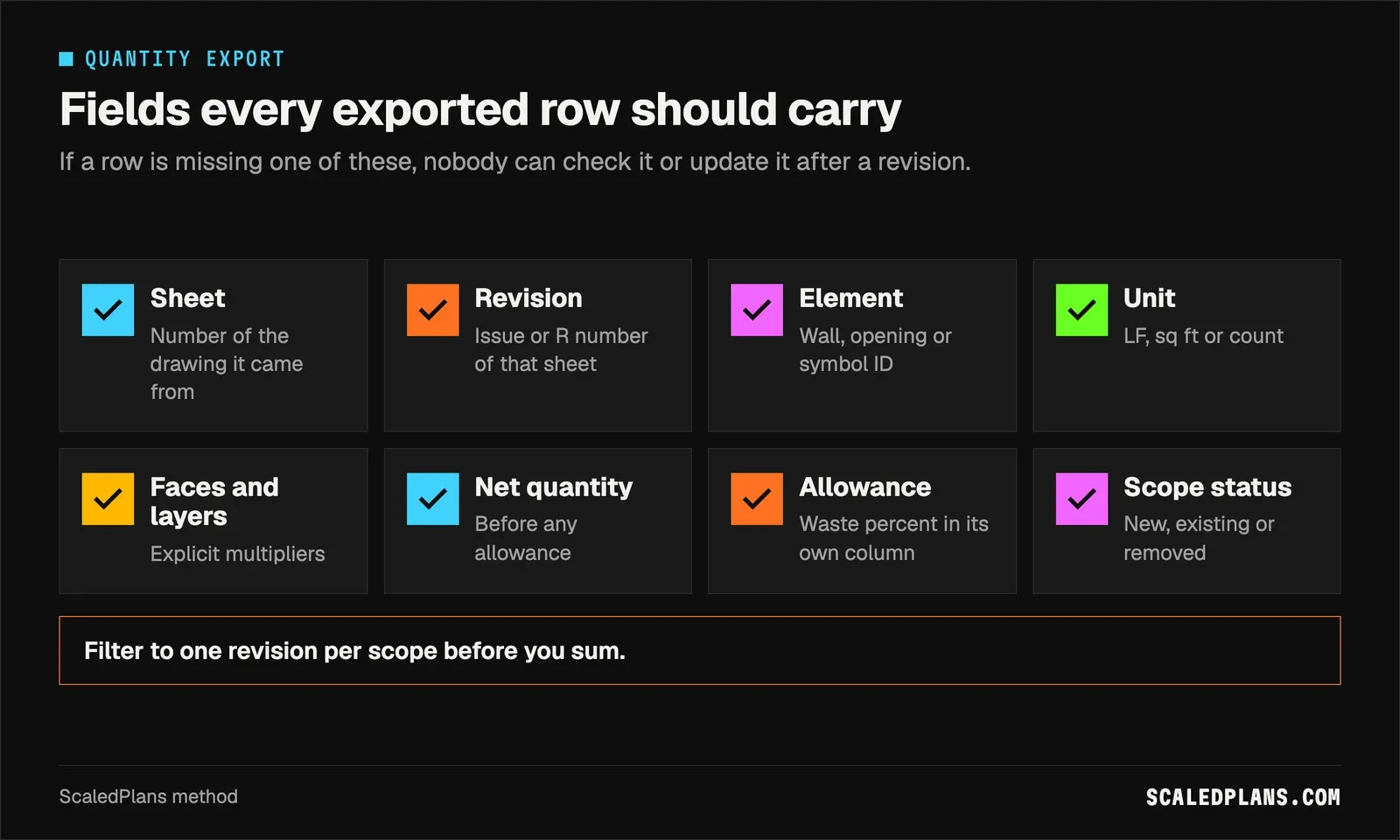

• Exporting totals with no source. Keep sheet, element and revision on each line.

Is there an app that reads blueprints?

Yes. PDF measurement and plan review apps open sheets, calibrate scale and record markups, and some also recognize text and symbols. Judge them by whether each output links back to a place on the drawing. A readable answer still needs checked dimensions, scope and revisions.

Can ChatGPT read construction plans?

A chat model can read visible text and talk about what a sheet shows. Do not assume it measured scaled geometry. Give it lengths you measured yourself, check every number it returns, and keep the drawing reference for each quantity.

Reading a blueprint for a takeoff comes down to identity, scale and source: know which sheet and revision you hold, prove the scale twice, and tie every number to the element it came from. The habit that saves the most money is writing faces, layers and revisions as their own columns. Try the drywall calculator on your next room, or get started with ScaledPlans on a sheet you have already counted.
