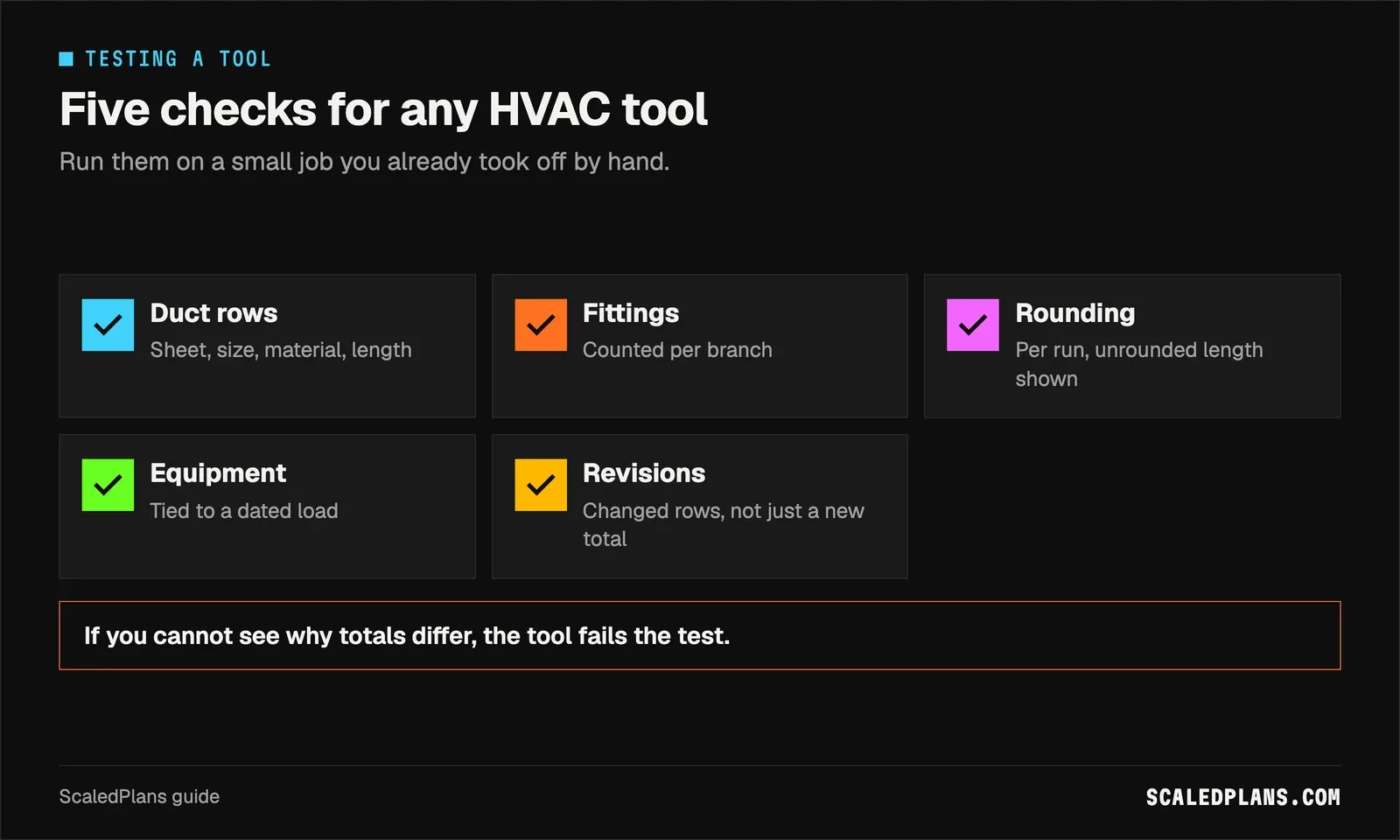

HVAC Estimating Software: 5 Checks for a Duct Takeoff

HVAC estimating software turns a mechanical plan into a priced list of equipment, duct, fittings and terminals, with every line traceable to a sheet, an airflow and the load that justified the equipment. For residential work, the useful test is simple: can you see where each duct run, fitting count and condenser line came from?

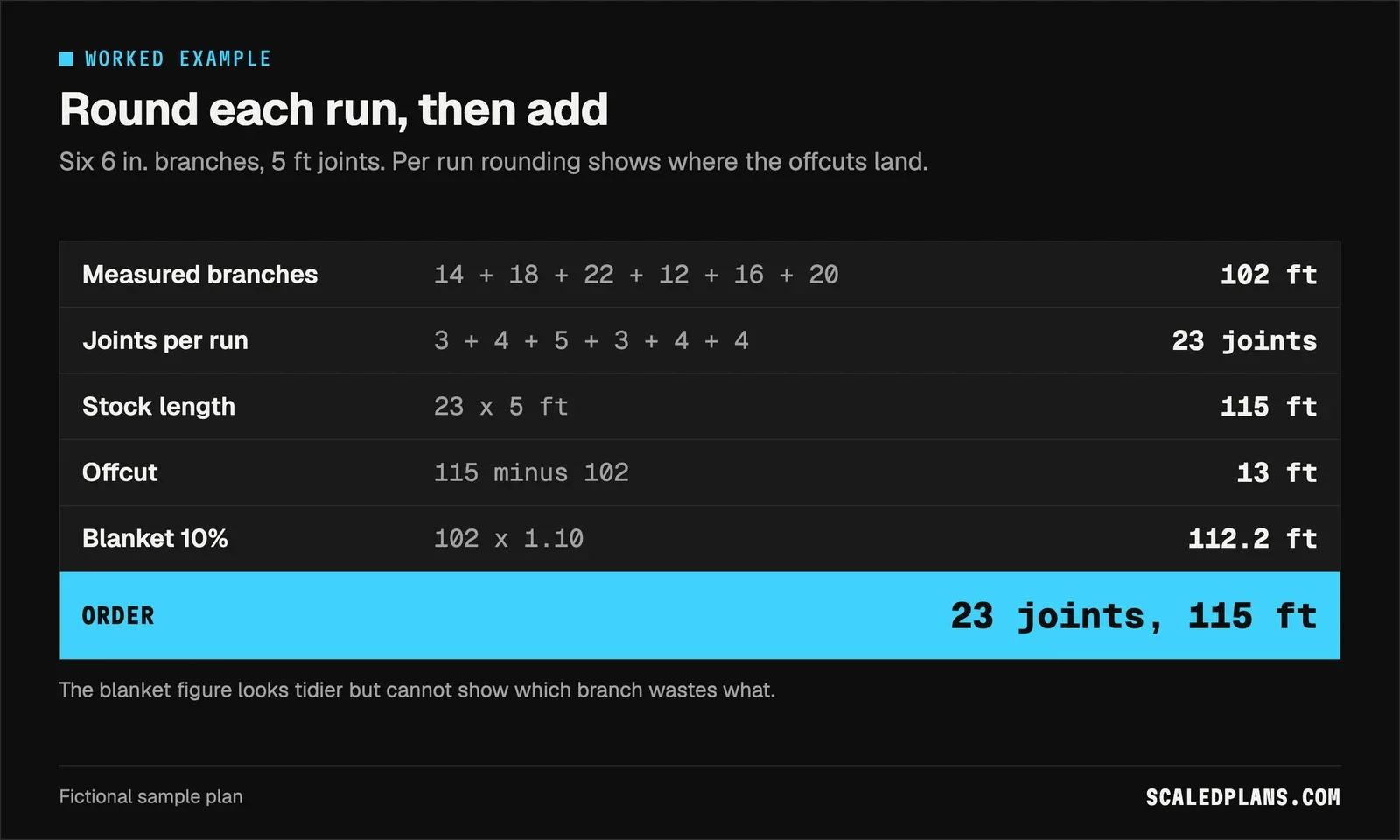

The surprise is in the rounding. Six fictional branches that measure 102 ft need 23 five-foot joints, or 115 ft, when you round each run on its own. A blanket 10 percent allowance gives 112.2 ft and hides where the offcuts really land. Per-run rounding is slower to type and far easier to defend.

What HVAC estimating software should keep traceable

A residential HVAC bid mixes three kinds of numbers. Counted ones: air handlers, condensers, registers, grilles, boots, dampers and thermostats. Measured ones: trunk and branch lengths, line set runs, condensate lines and vent pipe. Derived ones: the cooling load, the nominal tonnage and the airflow each branch must carry. Good software keeps them apart, so a reviewer can tell a counted register from a scaled duct length from a calculated load.

Each row should carry its sheet number, revision, unit and status. Mark whether a row is measured, assumed or carried over from the old system, because changeouts reuse more than the drawings show. A register count of nine with no sheet reference cannot be checked when the architect moves a bedroom wall.

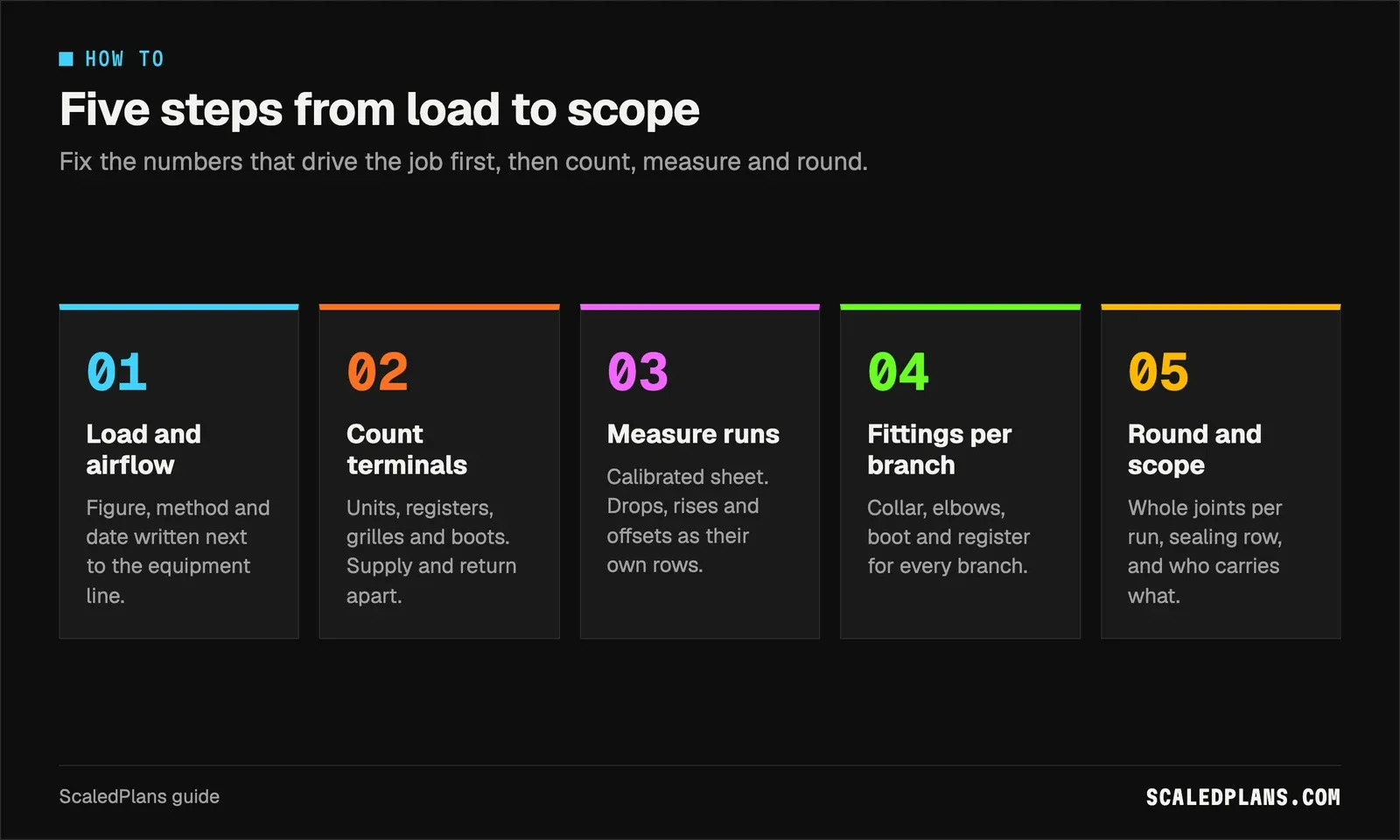

HVAC takeoff: equipment, duct, fittings and terminals

Run the HVAC takeoff in a fixed order so nothing is counted twice. Equipment first, from the mechanical schedule: indoor unit, outdoor unit, coil, furnace or heat pump, plus any ventilation equipment you carry. Then terminals: supply registers, return grilles and the boot behind each. Then duct, split by material and size. Fittings come last, because they depend on the routes you just measured.

Keep supply and return on separate rows even when they share a size. Split rigid from flex and insulated from bare. One "duct" line hides the most expensive differences on the job.

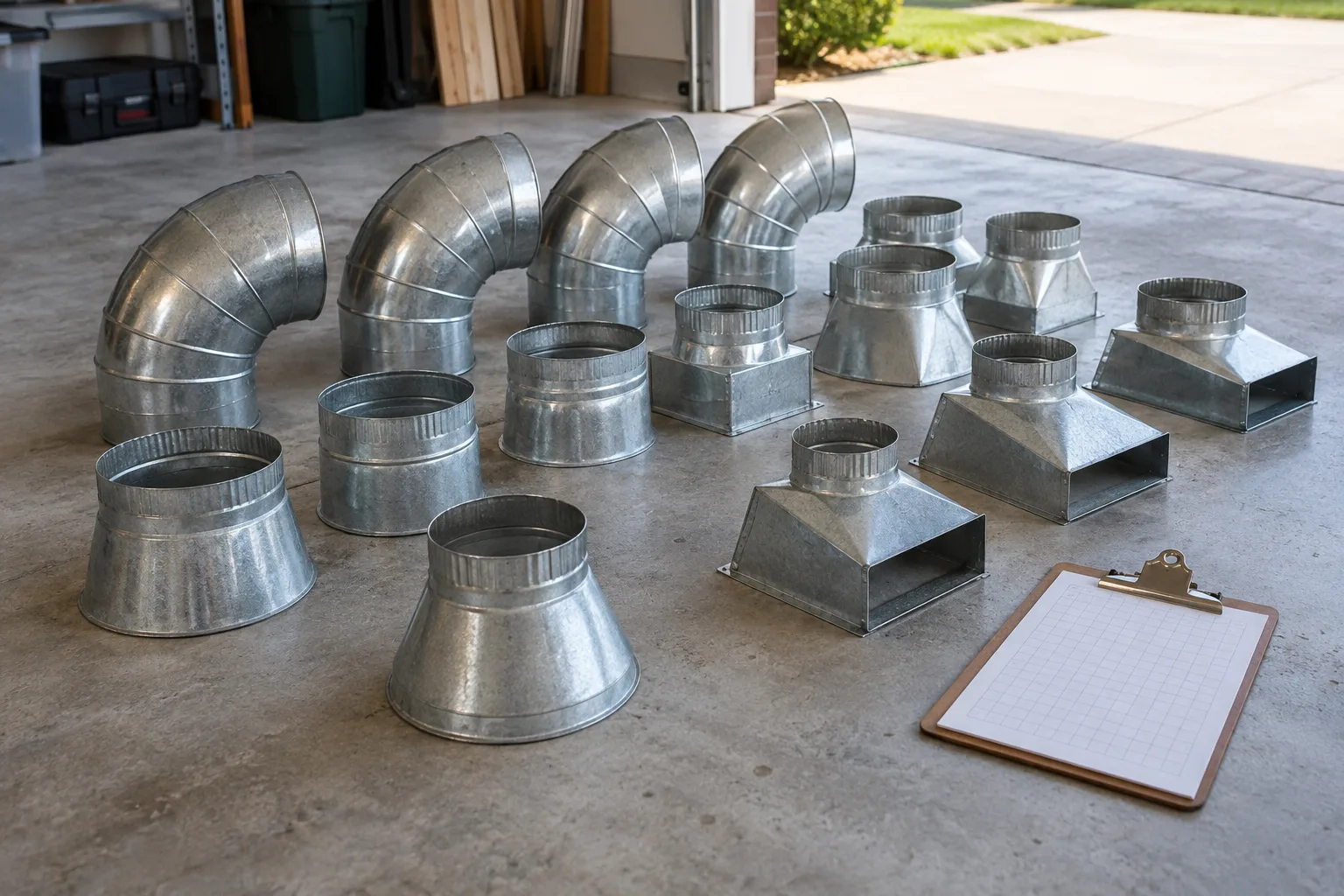

Fittings are where takeoffs drift. Each branch needs a takeoff collar at the trunk, usually an elbow or two, a boot and a register. Count them per branch, not as a percentage of duct length, because a short branch with two elbows uses more fittings per foot than a long straight one.

The load chain behind the bid

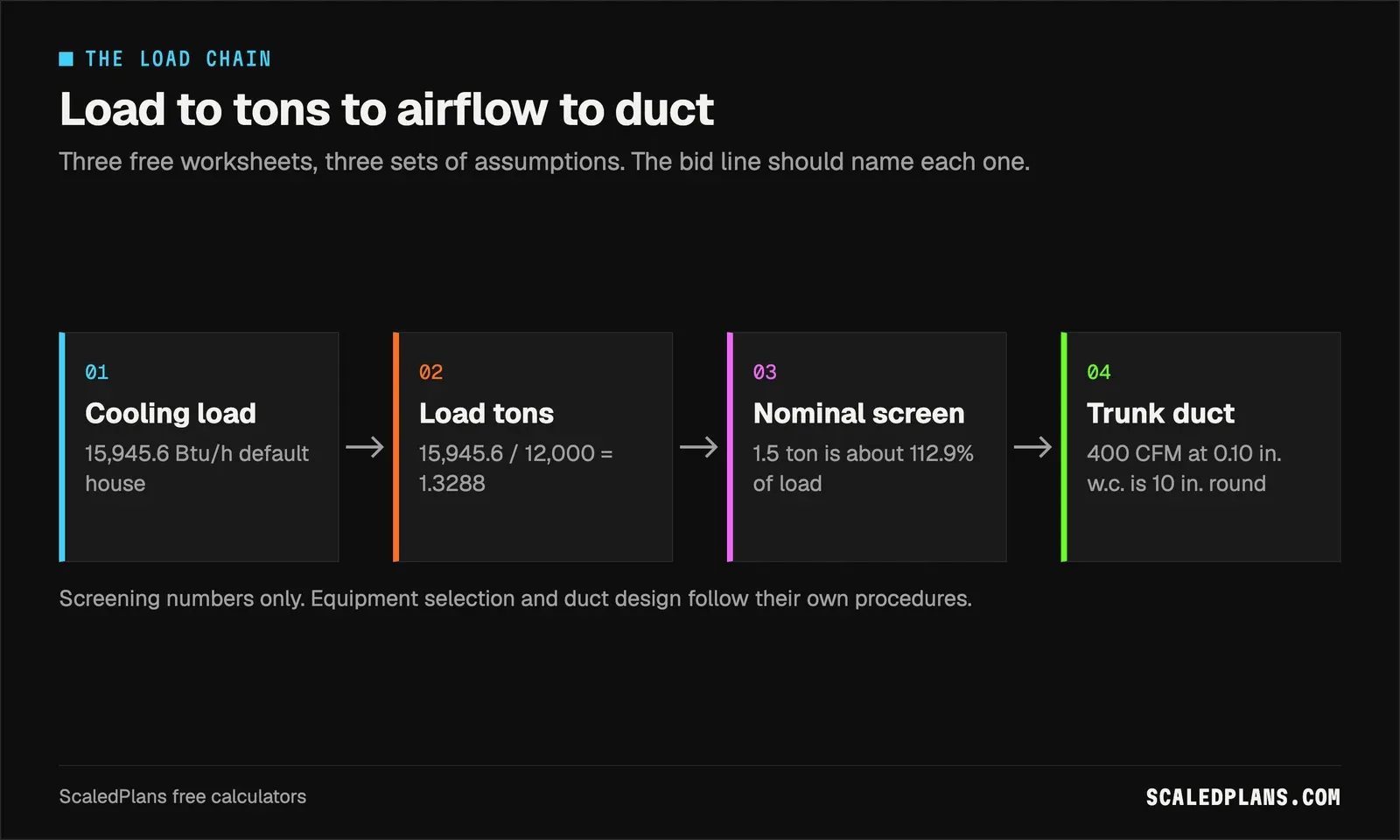

HVAC takeoff software should not pick equipment size, but it should show which number did. On a residential job the chain runs load, then capacity, then airflow, then duct size. Our free worksheets follow it with visible math. The default house in the HVAC load calculator gives a 15,945.6 Btu/h cooling estimate. The AC tonnage calculator turns that into 15,945.6 ÷ 12,000 = 1.3288 load tons and screens a 1.5 ton nominal unit at 1.5 ÷ 1.3288, about 112.9 percent of the load. The duct sizing calculator sizes 400 CFM at 0.10 in. w.c. per 100 ft to a 10 in. round.

Those are three worksheets with three sets of assumptions, not one design. Equipment selection follows ACCA Manual S and duct design follows ACCA Manual D, after a full room by room load; the Manual J calculator guide explains what that report contains, and our walkthrough of how a Manual J load calculation gets done covers the intake and who can run it. In the estimate, write the load figure, its method and its date next to the equipment line. When a window revision changes the load, the condenser row should show it depends on the old number.

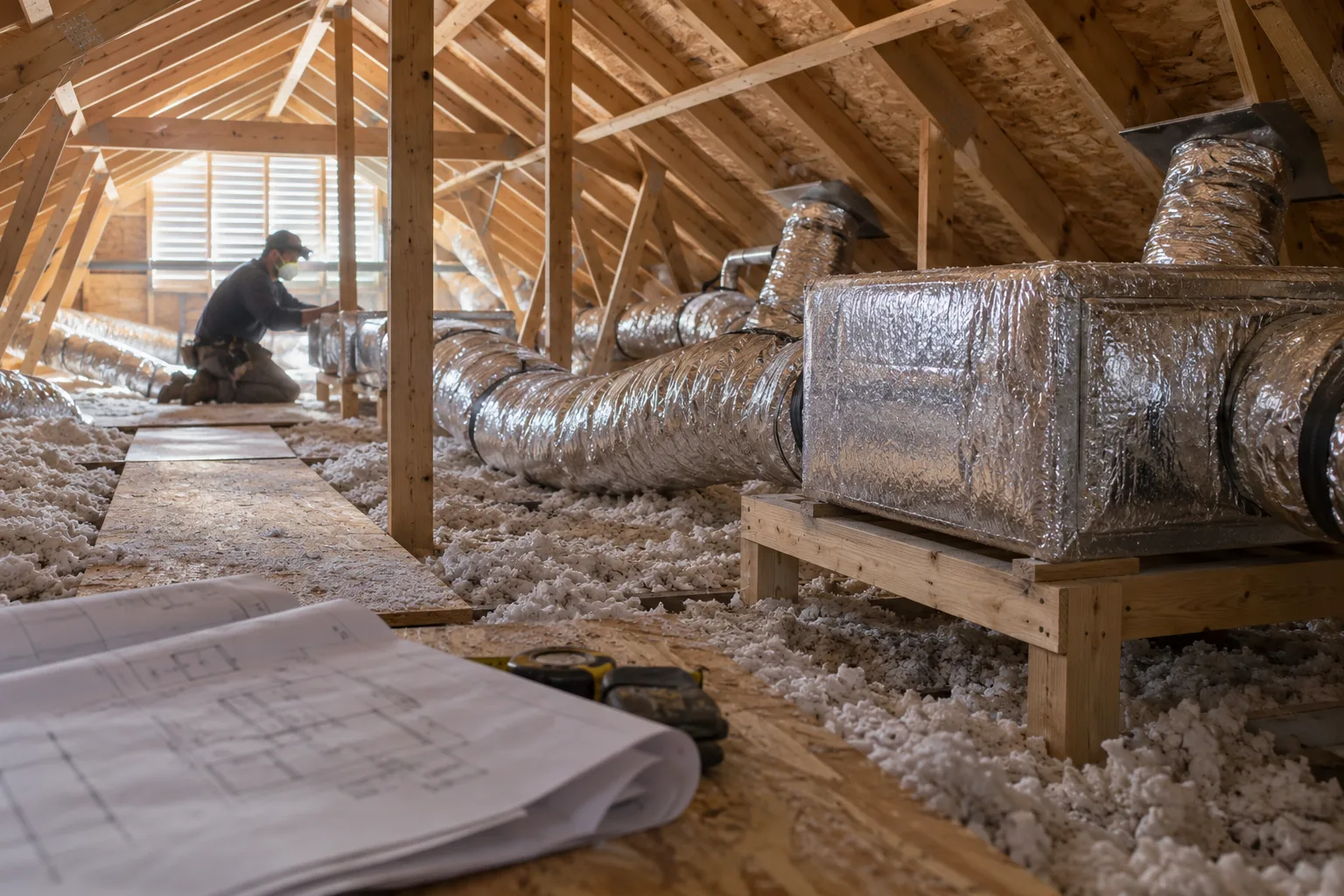

Worked example: one trunk, six branches, 400 CFM

A fictional single story job has a 10 in. round supply trunk at 400 CFM and six 6 in. branches. Pipe comes in 5 ft joints. All lengths and airflows are invented for the exercise.

Per-run rounding uses 115 minus 102 = 13 ft more than measured. Apply a blanket 10 percent instead and you get 102 x 1.10 = 112.2 ft, which looks tidier and still does not tell you that the 22 ft branch wastes 3 ft while the 20 ft branch wastes nothing. Show both numbers and a reviewer can see whether the allowance covers real offcuts or just pads the order.

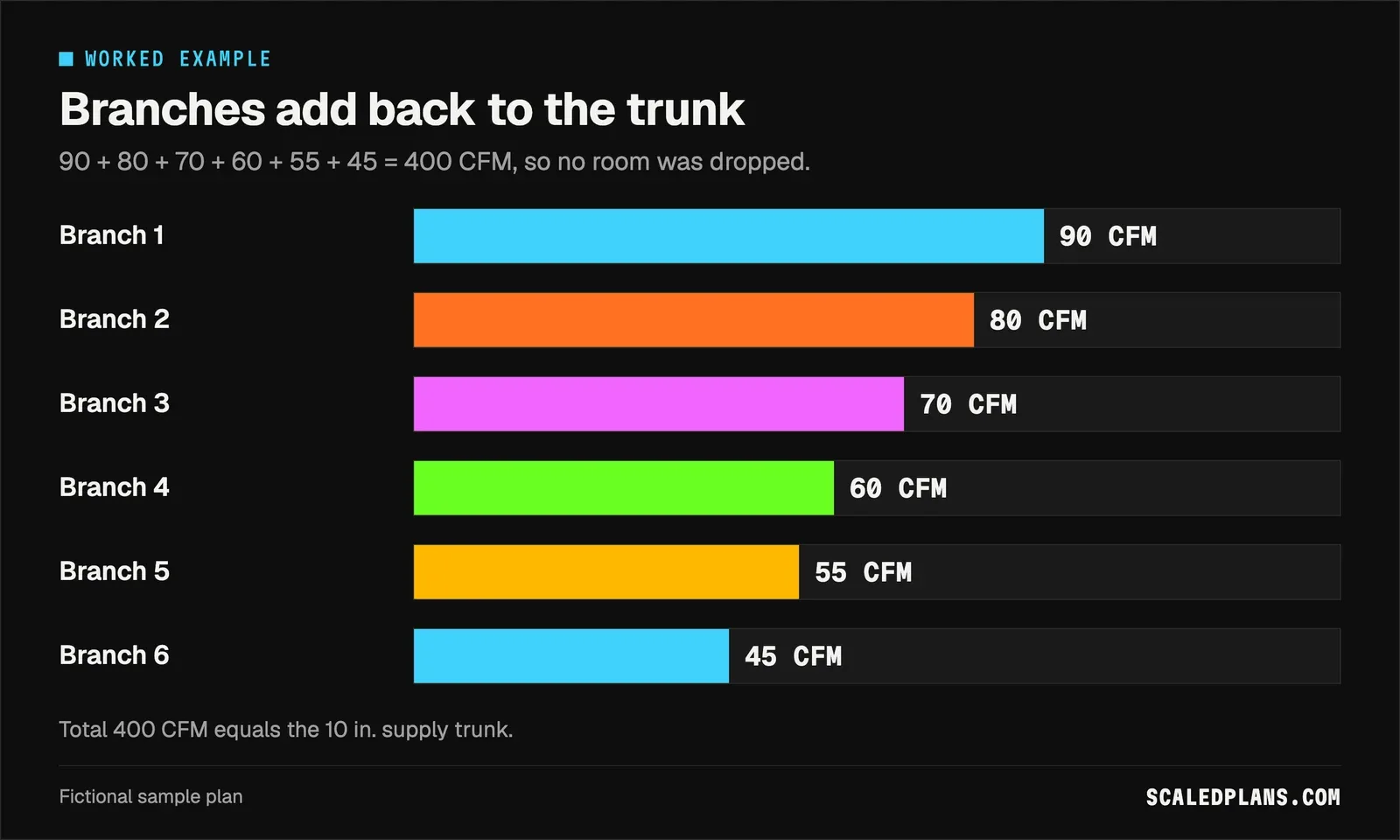

The airflow check matters as much as the lengths. The six branches add back to the 400 CFM trunk, so no room has been dropped from the plan.

Sealing deserves its own line. ENERGY STAR estimates a typical house loses about 20 to 30 percent of the air moving through its ducts to leaks, holes and poor connections. A takeoff that lists mastic, tape and sealing labor as explicit rows makes that scope harder to cut during value engineering.

HVAC estimates by job type

Most residential work is a changeout or a small addition, and neither arrives with a full mechanical drawing. Photograph nameplates and attach them to the estimate record. For additions, whether the existing equipment can carry the new rooms is a design question, so keep it open. Vent stacks and duct trunks fight for the same joist bays, which is why the plumbing estimating software guide is worth reading alongside this one. If a tool reads plans for you, the AI takeoff software guide shows how to check its counts.

A manual HVAC takeoff, and where it breaks

You can do the whole takeoff by hand. Print the mechanical sheet, highlight supply and return in two colors, measure each run with a scale, tally fittings per branch on a pad and round each run in a spreadsheet. If new returns mean cutting ceilings, size the patch with the drywall calculator and say which trade carries it. Permit rules for mechanical work vary, so check with your permit office before you treat any document as the submission.

The hand method breaks when the sheet changes. Every moved register means re-measuring branches, the old highlights do not show what changed, and a scanned mechanical plan with a fuzzy scale bar turns every length into a guess.

ScaledPlans measures the plan, duct runs included, and you check every quantity before you price it. Get started with a job you have already taken off by hand and compare the rows.

Common HVAC estimating mistakes

• One blanket allowance on all duct. Round each run to stock and keep the measured length beside it.
• Fittings as a percentage of length. Count collars, elbows, boots and registers per branch.
• Equipment line with no load reference. Write the load figure, method and date on the row.
• Assuming the old line set is reusable. Mark it reused, replaced or inspect first.
• Sealing buried in a fitting assembly. Give mastic, tape and sealing labor their own rows.

How do you estimate an HVAC job?

Start from the load and airflow, then count equipment and terminals, measure trunk and branch runs on a calibrated plan and count fittings per branch. Round each run to stock, add sealing, line set and condensate rows and write what is reused or excluded. Add labor and supplier figures last.

What software do most HVAC companies use?

Most residential shops combine a dispatch or field service system, a load calculation program, a takeoff or estimating tool and a spreadsheet for the final bid. The mix depends on whether they do mostly changeouts or new construction. What matters is that quantities keep their source references as they move between tools.

HVAC estimating software earns its place when every duct row, fitting count and equipment line points back to a sheet, an airflow and a dated load. The habit that matters most is rounding each run on its own and keeping the measured length beside the stock count. Check your trunk with the free duct sizing calculator, or get started with ScaledPlans on a job you have already counted.
