How to use this blueprint reader

1. Identify the drawing issue

   Check the project name, sheet index, title block and revision record. Open the relevant legend and read the scope notes before deciding which symbols and surfaces belong to the takeoff.

2. Calibrate and trace a small area

   Verify a known dimension, then check another dimension on the same view. Mark the measured runs or counted symbols so another person can reproduce the result without relying on an unexplained total.

3. Export with source fields

   Carry units, faces, layers, openings and revision identifiers into the quantity list. Filter alternative revisions before adding rows and keep ordering allowances separate from the net drawing measurements.

How to read blueprints from the title block

Start with the drawing identity before examining individual rooms. The title block tells you which project, sheet and issue you are reading. Compare it with the sheet index and any transmittal or revision schedule supplied for the job. A clear PDF filename is helpful, but it is not proof that every page belongs to the latest issue. Mixed revisions are a common source of unexplained quantity differences.

Read the general notes and legend next. They define abbreviations, line types and symbols that might otherwise seem familiar. A dashed outline could describe hidden construction, demolition, an overhead feature or another condition defined by that set. Make a short list of the symbols relevant to your trade and find their schedule references. Avoid assigning meaning from a different project's legend.

The single line diagram guide shows why document type matters. An electrical schematic represents connections rather than measurable routing geometry. Similarly, a floor plan, elevation and section each describe a different view of the building. A measurement that belongs on an elevation cannot always be recovered from a floor plan. Record the sheet and detail reference beside each quantity so another estimator can retrace your reading without reopening the entire set and guessing where you started.

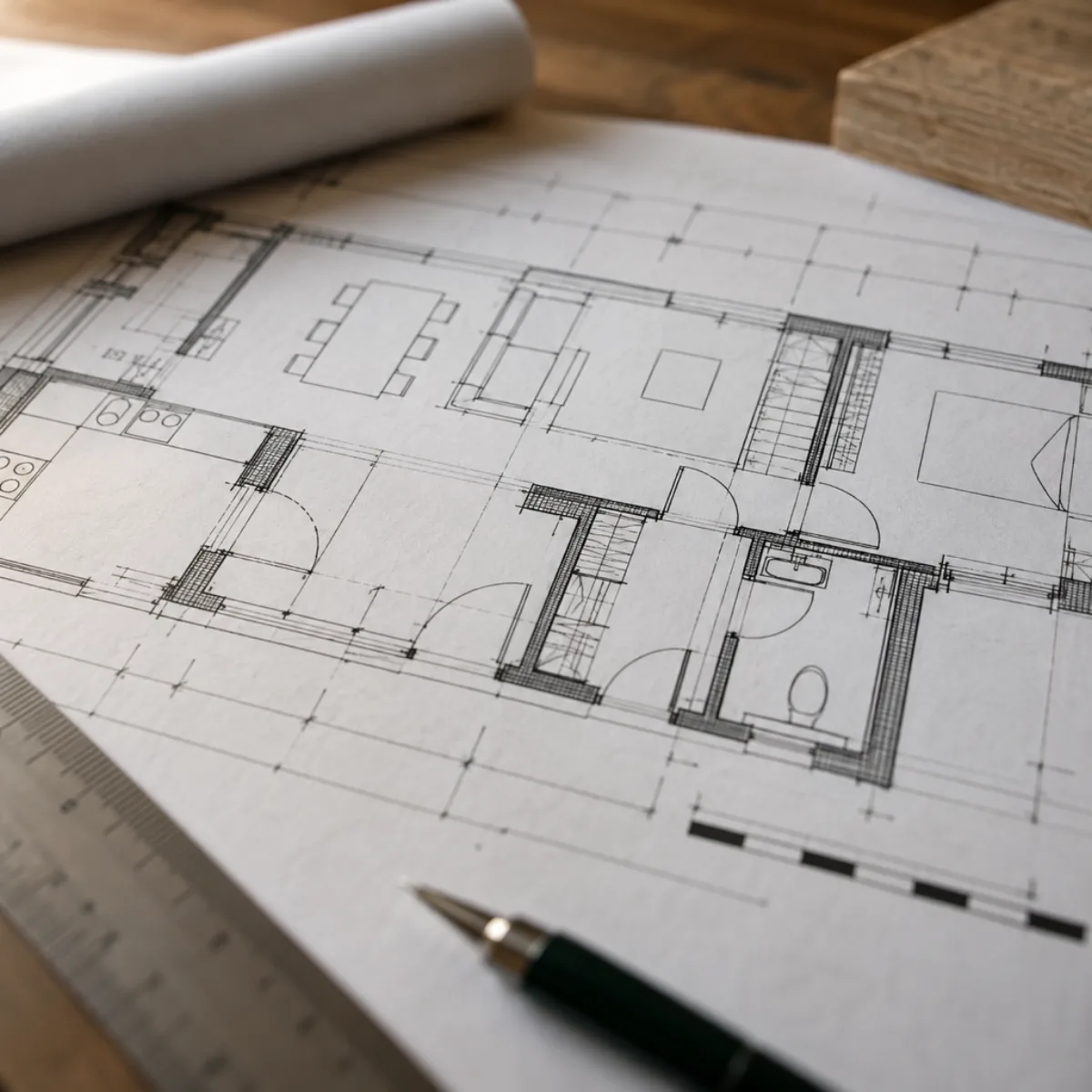

Blueprint reading scale: verify before measuring

A scale label gives the intended drawing ratio, but a PDF can be resized after export or scanned from a print. Before measuring, calibrate against a reliable labeled dimension on that view and check a second dimension. A long reference helps expose small calibration errors. If horizontal and vertical checks disagree, investigate distortion or a different viewport scale instead of averaging them into a convenient number.

At an intended quarter-inch-to-one-foot scale, a 30 ft run would occupy 7.5 inches on a correctly sized print. That is an illustration of the ratio, not a guarantee about your screen or printer. Enlarged details can use a different scale on the same sheet. Bluebeam's scale documentation explains page calibration and viewport handling; the underlying review principle applies regardless of the PDF tool used.

Use the framing calculator only after confirming the wall run and layout assumptions. It cannot detect that a PDF measurement was taken at the wrong scale. Where a dimension is explicitly shown, reconcile it with the measured geometry and the applicable drawing notes. Resolve discrepancies with the responsible designer before purchasing materials. Keep a calibration note with the takeoff stating the reference dimension, sheet revision and any views excluded because their scale could not be established.

AI blueprint reader: separate labels from geometry

An AI blueprint reader may help locate room names, symbols or schedule entries. Those are useful starting points, but text recognition and geometric measurement are different tasks. A recognized number can belong to a detail callout, elevation marker or room identifier rather than a length. Review the surrounding drawing before transferring it into a material quantity.

For a useful check, ask whether every output has a visible source. A wall measurement should identify its endpoints and units. A fixture count should identify the counted symbols and legend category. An opening deduction should identify the opening dimensions, affected faces and revision. Without that connection, a plausible total is difficult to audit. This page provides a reading workflow and linked samples; it does not demonstrate automated plan extraction or guarantee recognition accuracy.

The electrical estimating software guide applies the same discipline to device counts. A repeated fixture symbol in an installation detail should not become another purchased fixture. When comparing tools, use the same small drawing area and manually verified reference count. Include an ambiguous note or revised opening in the test. The useful result is not simply a fast answer: it is an answer whose omissions, assumptions and corrections you can inspect before sending quantities into a bid.

From plan dimensions to drywall and framing takeoffs

The A1 drywall sample has four independent runs labeled W1 through W4. Each is 30 ft long and 8 ft high, with two faces and one layer of board. One run contributes 30 × 8 × 2 = 480 sq ft, so all four contribute 1,920 sq ft. Faces and layers are explicit multipliers; overlooking either can create a larger error than the chosen waste percentage.

The drywall calculator handles measured room coverage, while the sample shows a partition-run method. Keep the scope difference visible when comparing results. A1 excludes openings in its original version. Its R1 variation deducts a 3 × 7 ft opening on both faces of W4, reducing coverage by 42 sq ft. That revision changes the order calculation without changing the original drawing record.

A lumber count uses different inputs even when it starts from the same wall length. Stud spacing, corners, openings, backing and plate lengths belong in a framing takeoff. Board face area cannot simply be divided by an arbitrary factor to obtain studs. Preserve each trade's assumptions in separate lines, and coordinate any changed opening across both trades. This gives you a useful change trail: one revised opening, one affected wall reference and separately calculated material consequences.

Use elevations and site sheets for exterior scope

Exterior quantities often need elevations as well as the floor plan. A wall's length may appear in plan, while its finish height and gable rise appear in elevation. A roof or siding edge can be concealed behind another building feature in one view. Read the referenced sections and details before deciding which surfaces belong to the estimate.

The siding calculator separates rectangular wall area, triangular gables and openings. Keep those components separate in the source record too. A triangular gable with a 24 ft base and 5 ft rise contributes 60 sq ft before deductions. That number belongs to the elevation showing the gable, not a floor-area total. Measure trim profiles and accessory lengths independently because they do not scale directly with net siding area.

For placement information, use the site plan for permit guide. A site sheet relates proposed work to the parcel and existing structures. Its north arrow and scale help orient the project, but legal boundary evidence comes from the accepted source documents. Do not measure property setbacks from a screenshot and present them as surveyed distances. The drawing family determines what a line means, which source controls it and which quantity can reasonably be derived from it.

Preserve revision history in the exported quantity list

An exported quantity is most useful when it retains its source fields. Keep the sheet, revision, element identifier, unit, net measurement and ordering allowance in separate columns. The A1 sample CSV demonstrates this with wall runs, an opening correction, a separate ceiling and an additional board layer. These are not four interchangeable versions of the same total.

Filter to the intended scope before adding rows. The original A1 and revised A1-R1 totals are alternatives; adding them together would count much of the same wall work twice. C1 describes a separate ceiling, while W5 describes an extra layer. Their inclusion depends on the bid scope. A spreadsheet formula cannot resolve that scope decision merely because all rows share square-foot units.

When an envelope revision also changes windows or insulation, pass the updated dimensions to the person preparing the Manual J calculation. A changed opening can affect more than the material order. Issue the revised quantity list with a concise change note and keep the earlier export available for comparison. Before releasing the bid, spot-check several rows back to their drawing references. Choose at least one opening, one multilayer surface and one revised item so the review tests the parts most likely to hide an assumption.

Check the math

Worked example: A1-R1 changes one opening

Read the A1 plan and its R1 variation, then inspect the quantity CSV. The original four runs total 120 linear feet. With 8 ft height and two faces, that is 1,920 sq ft. The revised 3 × 7 ft opening affects both faces of W4, so deduct 42 sq ft once from the total. R1 therefore has 1,878 sq ft before waste. Multiplying by 1.10 and dividing by 32 gives 64.55625 sheets; round the combined order to 65. This exercise deliberately excludes the separate ceiling and additional-layer rows. The revision changes a geometric input, while the waste factor and sheet area remain fixed, making the cause of the quantity change visible.
