Single Line Diagram

How to use this single line diagram

1. Collect the electrical references

   Bring the current plan set, readable equipment labels and proposed equipment schedule. Assign source filenames to each photograph and data sheet so a reviewer can identify the evidence behind every equipment tag.

2. Match the diagram and schedule

   Trace the supply to the distribution equipment, then compare P1 and its circuits against the schedule. Record missing ratings and connection decisions as open items. Keep the demand calculation separately identified.

3. Issue a coordinated revision

   Give the drawing, equipment register and panel schedule matching revision references. Resolve the open design questions with the responsible professional, then check that any changed equipment model appears consistently in the related sheets.

Single line diagram electrical symbols and scope

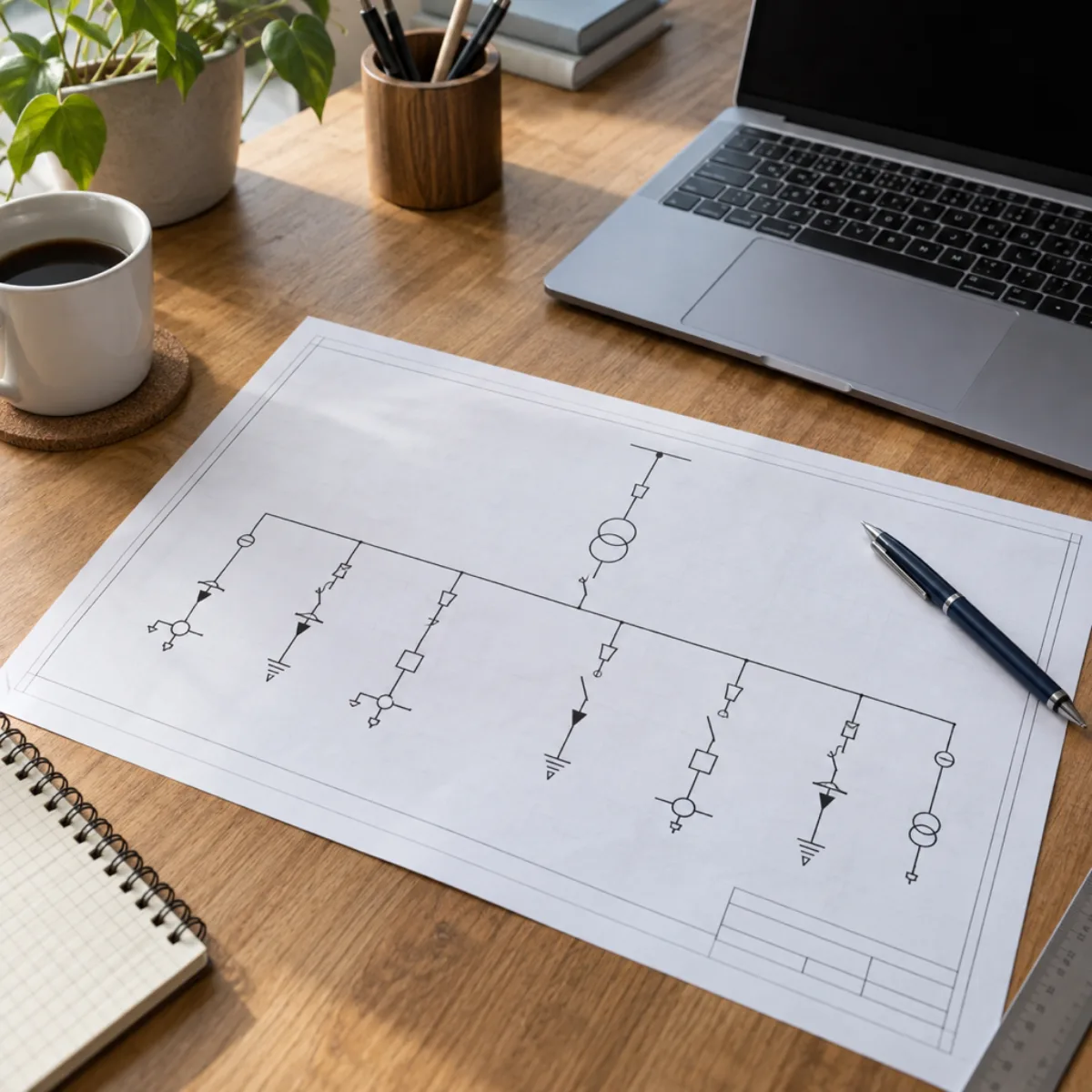

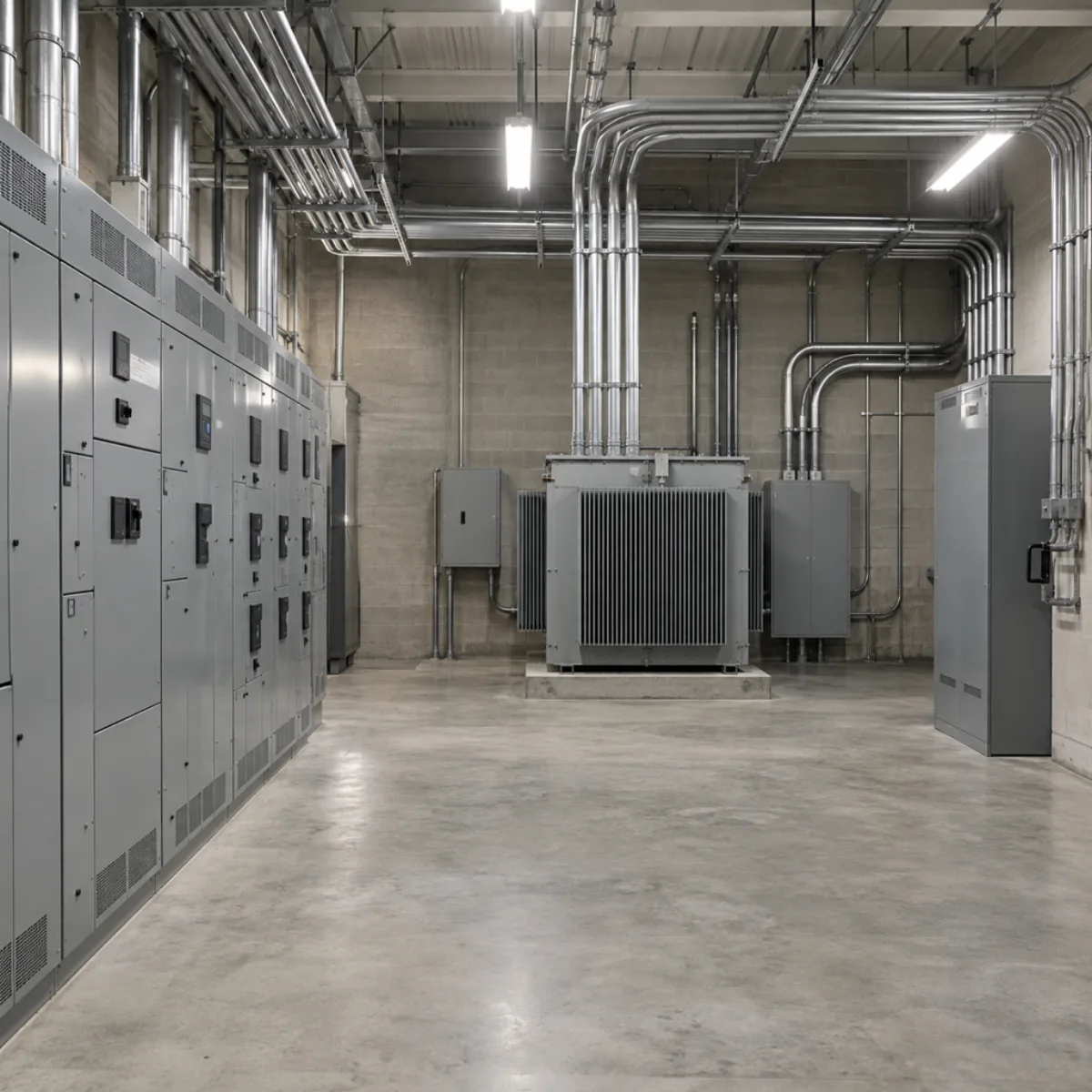

A single line diagram electrical drawing compresses a power system into a readable path. One drawn line represents a circuit relationship rather than every physical conductor. Equipment symbols and tags identify the source, disconnecting equipment, distribution and major loads. Read the legend first: the same-looking mark can carry a different meaning in a particular drawing set. A symbol without its tag, rating and supporting note tells only part of the story.

Begin at the supply and follow each connection to its destination. On a residential proposal, distinguish existing equipment from additions using explicit labels or a drawing legend. Do not rely only on color, which can disappear in a printed copy. Where the service configuration is unknown, leave that fact visible. Filling an empty field with a typical rating makes the sheet look finished while making its review harder.

The panel schedule template helps organize connected circuits alongside the diagram. It does not determine feeder sizes or protective settings. Treat the one-line as an index into the design record: every significant equipment tag should lead to a schedule, nameplate or specification. The E1 sample deliberately omits conductor and breaker selections, so its relationships must not be used as wiring instructions.

One line diagram versus a panel schedule

A one line diagram answers which major components connect. A panel schedule answers which circuits belong to a panel and what each circuit serves. A floor plan answers where the equipment and devices sit. Keeping those questions separate makes a small project easier to coordinate, especially when an addition changes only part of an existing house.

For example, the P1 tag should mean the same panel on the drawing, schedule and equipment list. Circuit descriptions need enough detail to distinguish a kitchen appliance from general receptacles or another dedicated load. Record whether each entry is retained, relocated, removed or proposed. An empty description is an unresolved identification task; an empty breaker position is not evidence that the service has capacity for another major appliance.

Use the electrical load calculator for a separate dwelling demand worksheet after verifying the applicable calculation method. Its result belongs beside the schedule with its inputs, code edition and scope. Never total breaker handle amperages and label the sum service demand. Likewise, dividing all connected volt-amperes by voltage produces a connected-current comparison, not an automatic approval of the equipment. A reviewer should be able to move between all three documents without translating equipment names or guessing which revision is current.

Build an equipment reference register

Give every major item a stable identifier before drawing the final lines. The E1 sample uses UT1, SE1, P1 and PV1. A useful register adds the manufacturer's model, nameplate photograph reference, installation status and source date. For equipment that has not been selected, write a design question instead of copying a neighboring project's rating. This is especially useful for solar or battery proposals with several documents in circulation.

Use two distinct review columns: information received and information verified. A clear photograph may satisfy the first without satisfying the second. A qualified person still needs to confirm that it shows the actual equipment serving the work. Keep concealed conditions and unreadable labels in an open-items list. This list should travel with the drawing rather than remaining in an estimator's message history.

The electrical estimating software guide explains how the same register supports a material takeoff. An equipment tag can identify one assembly in the estimate, but the assembly needs a separate bill of materials and installation scope. Record enclosure, mounting, termination and accessory assumptions where applicable. That prevents the diagram's four equipment symbols from being mistaken for a complete four-item purchase order. Finish the register by checking that every tag on the drawing has exactly one intended meaning.

Coordinate solar, service and site information

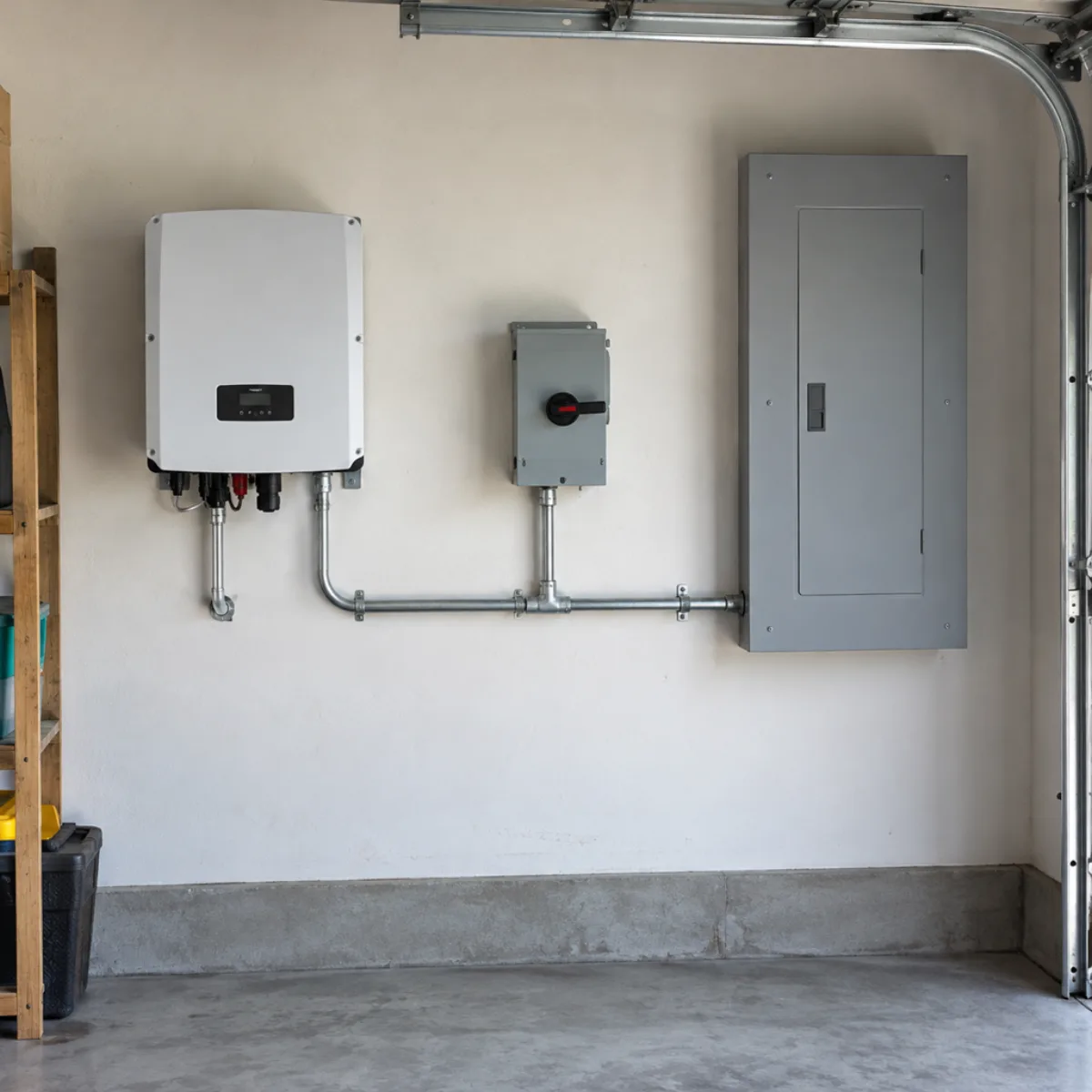

Solar changes the information required around a one-line. The proposed inverter needs a verified model and output specification, while the connection method must come from the responsible design and utility process. The E1 sample places PV1 near the distribution references but explicitly leaves the interconnection point unresolved. Preserve that distinction when discussing the example: its layout demonstrates document organization, not a permitted solar configuration.

A site plan for permit can show the building, equipment locations and the relationship to the property. Its dimensions serve a different purpose from an electrical schematic. Coordinate exterior equipment identifiers across both sheets, particularly where access or a route crosses another scope. A one-line connection should not be measured as though its drawn length were an installed raceway distance.

For new loads, collect electrical input from the equipment nameplate. Heating and cooling output from a Manual J calculator is expressed in thermal units and cannot be inserted directly as electrical consumption. Keep the HVAC load report, equipment selection and electrical schedule linked through the chosen model. Where a source changes, identify every sheet that depends on it. The appropriate professional and reviewing authority determine the technical design; this workflow makes their source information easier to inspect.

Review ratings without inventing a design

An electrical drawing can contain a service rating, panel bus rating, protective-device rating and connected load, all expressed with familiar units. They are not interchangeable. A legible register names the kind of rating as well as the number and its source. Record voltage and phase with the equipment information; a bare ampere value loses context when copied into another document.

The applicable electrical code and utility requirements govern the design decisions. NFPA 70 is the National Electrical Code reference; the edition adopted for the project must be identified before using a numbered requirement. This page does not select conductor ampacity, grounding details, fault-current ratings or a solar interconnection method. Those decisions need the actual system information and responsible technical review. Keep unresolved design fields clearly separate from information already verified in the field.

Use the blueprint reader guide when a diagram refers to a detail, equipment schedule or revision elsewhere in the plan set. Follow the reference instead of assuming the missing information is unimportant. In a review meeting, discuss one open item at a time: what is missing, who supplies it, and which drawing depends on it. A short, accurate open-items register is more useful than a polished sheet that conceals its assumptions.

Track revisions from drawing to field record

Save an issued drawing with its date and revision identifier. When a panel or inverter changes, keep the earlier issue and make a new record showing the changed tag, source and affected schedules. A cloud or revision marker should explain the scope of the edit, but the written change description is what lets another person understand it without comparing pixels.

Consider an E1 review with four equipment references. UT1 is confirmed by the utility information, while SE1 and P1 have readable identifiers but unverified ratings, and PV1 lacks a selected model. That is one closed reference and three open references, not a seventy-five-percent complete electrical design. Counting closed items is useful for document coordination; it cannot measure technical completeness because one unresolved connection can control the entire proposal.

Before issuing the next version, compare the tag register to the panel worksheet and demand calculation. Check that renamed loads have not become duplicate entries. Attach the relevant manufacturer data and retain the field notes that justified each correction. The final handoff should state which items were checked and which remain outside the drawing scope. This creates a traceable record for the electrician, designer and reviewer without promising that a document alone establishes installation compliance.

Check the math

Worked example: four E1 references, three open checks

Open the existing E1 coordination sheet or its printable PDF. It provides equipment names and an intentionally unresolved solar connection. The table below is an added document-review exercise, not a claim that the sample contains verified ratings. Suppose utility identification is received first. One of four register rows can then be closed for identification, leaving three to follow up. Do not turn that count into a design-completion percentage. SE1, P1 and PV1 each depend on different evidence, and all connection details still need their own review. Carry the unresolved status into the next issue rather than drawing a guessed route to make the page appear finished.

Single Line Diagram questions

Sources

• NFPA 70: National Electrical Code: Electrical installation standard; confirm the edition adopted by the project jurisdiction.
• U.S. Department of Energy solar permitting resources: Permitting and inspection context for solar projects; local and utility requirements remain project specific.
